Program equalizer, mastering
· Tube
Pulse Techniques · Fort Collins, Colorado

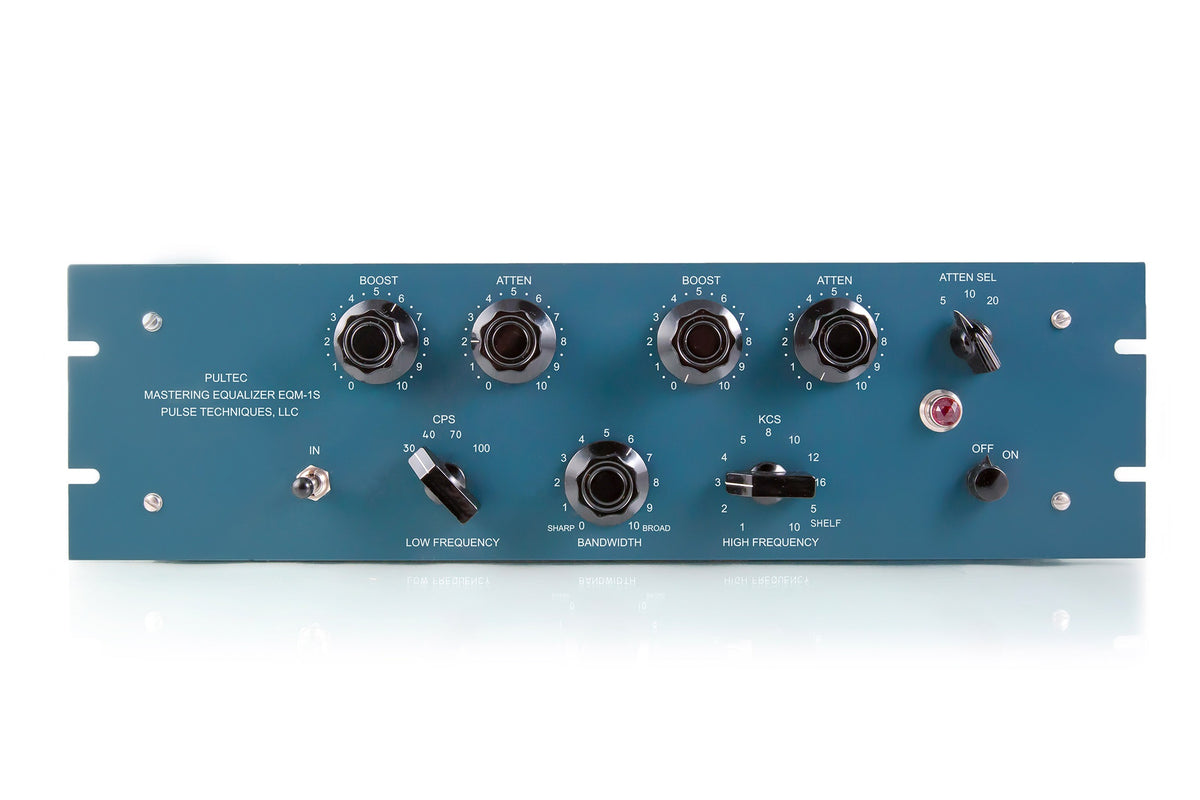

EQM-1S
In use
The EQM-1S is our flagship product. It combines the power and versatility of the EQP-1S3 with the precision and reproducibility of the mastering versions. This product is quickly becoming our most popular product for mix bus and/or mastering use.
Specifications
- 30, 40, 70, 100 CPS shelf boost, 0 – 10 dB in 0.5 dB steps
- 30, 40, 70, 100 CPS shelf attenuate, 0 – 10 dB in 0.5 dB steps
- 1, 2, 3, 4, 5, 6, 8, 10, 12 KCS peak boost, 0 – 10 dB; 5, 10 KCS shelf boost, 0 – 8 dB
- 5, 10, 20 KCS shelf attenuate, 0 – 10 dB in 0.5 dB steps
- Input Impedance: ~600 Ohms
- Output Impedance: ~50 Ohms
- Noise: 92 dB below +10 dBm
- Distortion: ≤ 0.15% at +10 dBm into 600 Ohms
- Amplifier: Flat, 20 CPS to 20 KCS, +/- 0.5 dB
- Tubes: 1 ea 12AU7, 12AX7, 6X4
