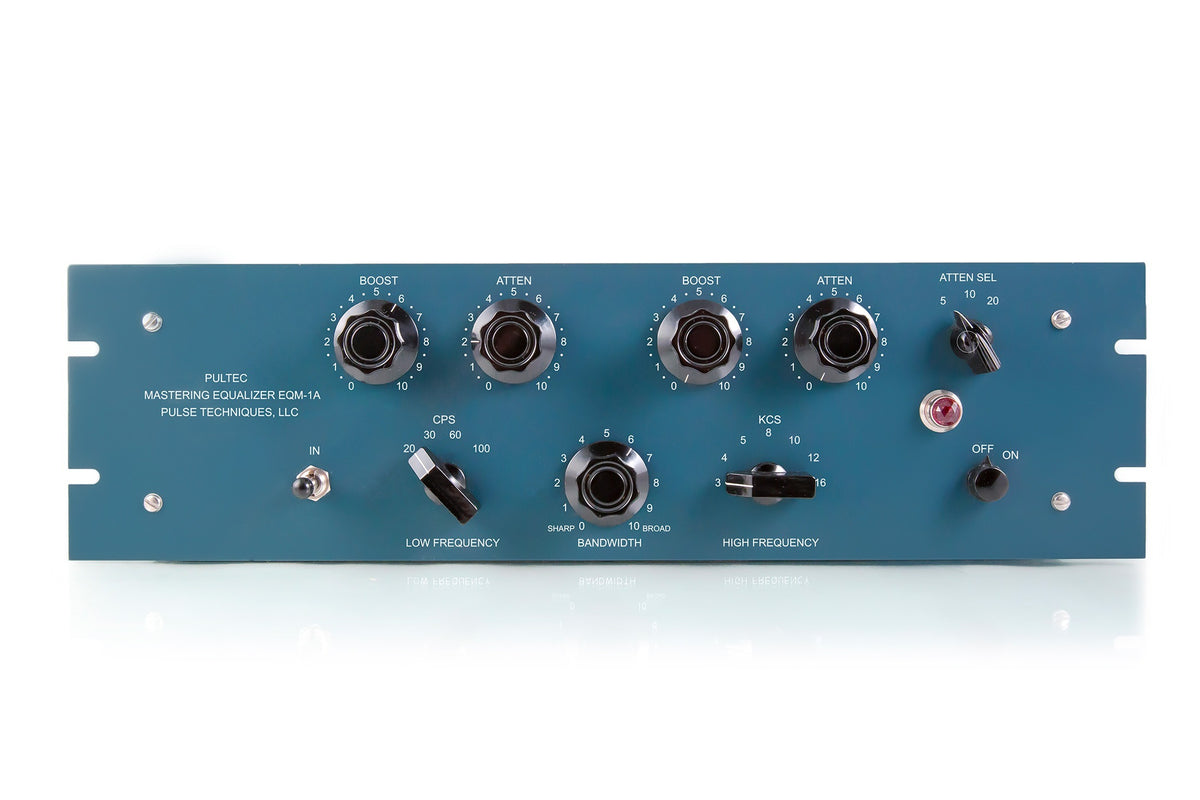

EQM-1A
The EQM-1A is the mastering version of our ever-popular EQP-1A program equalizer. Since bringing the EQP-1A model (3 rack-space) back into production in 2014, it has overtaken the 2U silver-face (but identical circuit topology) in popularity. Since first rereleasing the EQP-1A, customers have asked if/when we planned to do a mastering version of this iconic product. Well, we listen to our customers requests and feedback and so here it is. Complete with the same full-range progressive-taper Elma Switch stepped controls as our EQM-1A3 & EQM-1S3 mastering EQs, the BOOST/ATTEN controls provide 0.5dB steps for the initial ~50% of rotation and then increase step size as rotation is increased from 50%-100%. This provides fine control (subtle boost/cut) for mastering/mix-bus applications, while still delivering the full range (16-20 dB) of BOOST/ATTEN for more aggressive tracking applications.
Specifications
- 20, 30, 60, 100 CPS (Hz) shelf boost, 0 – 13.5 dB in 0.5 dB steps
- 20, 30, 60, 100 CPS shelf attenuate, 0 – 17.5 dB in 0.5 dB steps
- 3, 4, 5, 8, 10, 12, 16 KCS (kHz) peak boost, 0 – 18 dB in 0.5 dB steps
- 5, 10, 20 KCS shelf attenuate, 0 – 10 dB in 0.5 dB steps
- Full-range progressive-taper stepped controls
- Input Impedance: ~600 Ohms
- Output Impedance: ~50 Ohms
- Noise: 92 dB below +10 dBm
- Distortion: ≤ 0.15% at +10 dBm into 600 Ohms
- Amplifier: Flat, 20 CPS to 20 KCS, +/- 0.5 dB
- Tubes: 1 ea 12AU7, 12AX7, 6X4
- Note: the inherent interaction of Pultec controls affects the step size when both boost and attenuation are applied simultaneously.
